Keeping an Eye on Key Vital Functions at all Times
MPR2 logO DATALOGGER for Neuromonitoring
In neurocritical or neurointensive care, the monitoring of the physiological vital functions of patients plays a central role. The MPR2 logO DATALOGGER device from RAUMEDIC is the comprehensive monitoring solution for this.
Data Storage and Analysis with MPR2 logO DATALOGGER
Oxygen partial pressure measurement with the MPR2 DATALOGGER is based on the effect of dynamic luminescence quenching through molecular oxygen. The MPR2 DATALOGGER can emit light and calculate the ptiO2 value by means of the quenching effect using a special fiber optic inside the catheter (NEUROVENT-PTO family) and the Cable LWL from RAUMEDIC.
MPR2 logO DATALOGGER enable the display and storage of the measured intracranial pressure (ICP), intracranial temperature (ICT) and oxygen partial pressure (ptiO2).
Comprehensive Analysis Capabilities

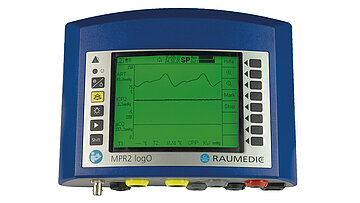

The MPR2 logO DATALOGGER has various screen modes to display curve and trend graphs, among other things, as well as a USB interface. In addition, the measured values can be transferred to the patient monitor via two analog outputs.

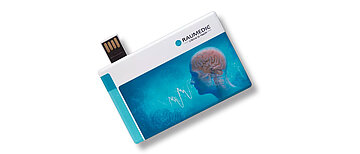

With the proprietary RAUMED DataView software, parameters stored in the MPR2 logO DATALOGGER can be visualized and archived on the PC.
Users of the ICM+ software also benefit from direct PC transfer of the parameters captured with the MPR2 logO DATALOGGER.
